Acoustic Pre-amp
ff

ee








Microphone stand mounted for easy access to the controls Connects to the PA or recording mixing desk with a standard balanced XLR microphone cable.
3 band tone controls and overall volume.
Silent push button muting of the output to enable tuning, or instrument changes without bangs and crashes through the PA system.
Mute state indicated with red LED.
Tuner output always available irrespective of control positions.
Compact size – (150 X 110 X 65mm).
Phantom powered from the mixing desk – so no batteries or power supplies required.
Side bracket has 3/8 inch standard thread for fitting to microphone stand adapters – but a convenient clamp is supplied with the pre-amp.
Standard cables used – an ordinary balanced microphone cable to connect to the mixer and a normal guitar lead.

UK price: £180.00 including VAT and postage

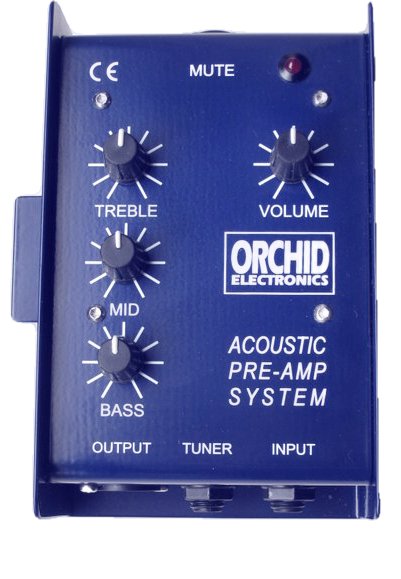

Pre-amp on stand

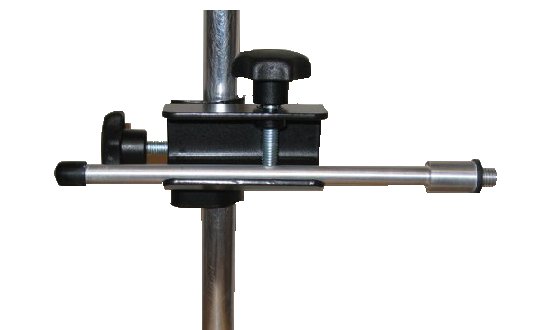

Mic Stand Bracket
Mute button

The development of the Acoustic Pre-amp for Steve Knightley (of Show Of Hands) - was featured in the Independent Newspaper (27 Nov 2000)

Click here to view the Independent Newspaper Article

There have been many favourable comments in magazines and by users on Web forums - and occasionally compared to other Pre-amp designs:

Acoustic Pre-amp Comparative Review in Acoustic Magazine Aug 2009 PDF document
